Well, with the help of a couple local reefer buddies (GBSteve and Kenbow) I have started my FIRST real DIY project. We are building 3 Calcium Reactors that are based on THIS one, with a few modifications. The BIGGEST difference is we have added 2" to all the dimensions! This beast measures 10"x10"x17" Tall! With a little approximation, we anticipate the reactor will hold nearly 3 GALLONS of ARM, which works out to about 30lbs. Since the reactor dimensions have been increased, and as is the norm in Michigan, we have also increased the Acrylic to 3/8" rather then 1/4". So far we have about $70 into the acrylic, and since Steve and Ken already have Ca Reactors, they only need a few more PVC parts and the media and they will be done, I have to add all the OTHER goodies, like the CO2 tank, regulator, etc, I expect my finished cost to come in around the $300 mark.

Well without further delay, here are some pictures:


Here are Ken's and my reactor in early construction.



In this image we are attaching the divider that keeps the 2 chambers seperate:


The 2 Reactors standing tall:


Steve's reactor, all 4 sides done, it needs a top now:


A top down into Steve's reactor:


Well this is about where we stopped for the night, we did attach the tops, but we need to router out the centers, and drill and tap for the removeable top piece. I started working on the Venturi that is used as part of the recirculation of CO2 gases, and it also is the input for the CO2 gas from the cylinder. I didn't really like the idea of using "gap sealing tape" as described in the thread, so I stood in front of the PVC at Lowes for a while and came up with this:

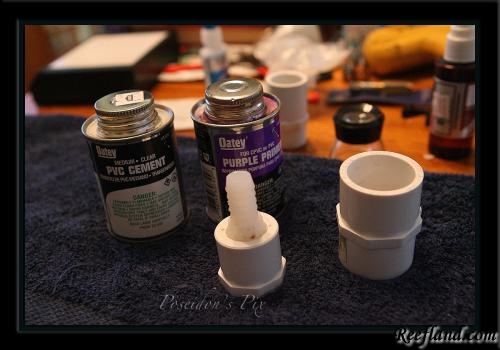

Which with a dremel tool and some CA, PVC Primer, and cement comes together like this:

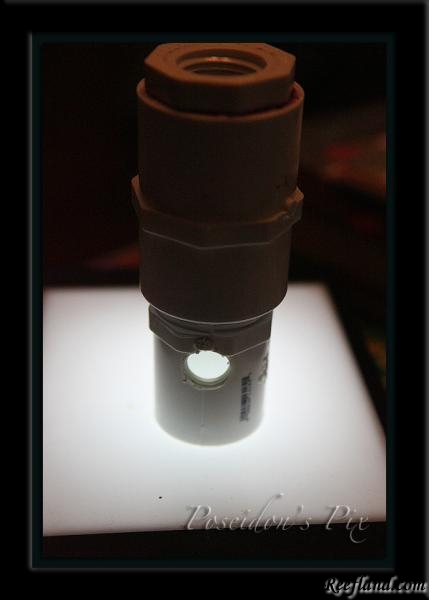

And finally:





The finished piece has threaded female 1/2" ends on each side. One of the 1/4" tubing lines recirculates the CO2 that is caught floating at the top of the reactor, the other is an input from the CO2 Tank. The Venturi was designed so the the pump would actively PULL the unused CO2 into the recirculation pump. Basic testing, (blowing into one end) confirms that the 2 1/4" line do in fact pull in air, so I call it a SUCCESS!

I am sure there will be more to come as the reactor continues to take shape, but for now, this is where we are! Wish us LUCK! I hope there are NO LEAKS!!!!
